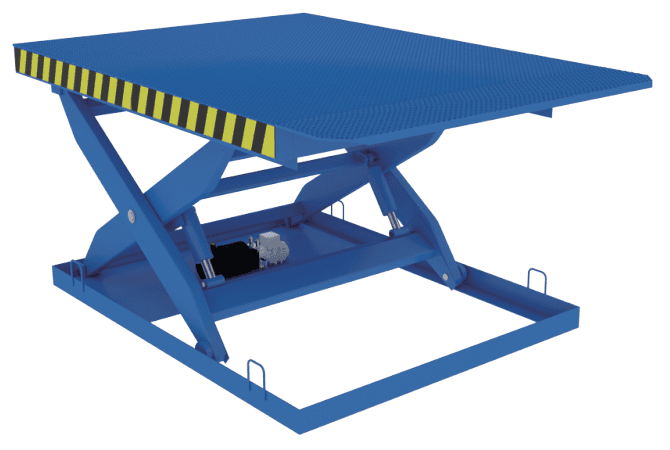

JD-2003Scissor Lift Dock Leveler
A lifting-platform arrangement for transferring goods between loading levels.
Scissor Lift Dock Levelers
Consider a vertical loading transfer. Start with the application and site interfaces, then confirm the equipment configuration.
What is this equipment used for?
A scissor lift dock leveler changes the transfer height through a lifting platform. Review the required travel, platform dimensions, load distribution and guarding rather than treating it as interchangeable with an inclined dock leveler.
Low-dock loading
lowest and highest transfer levels.
Variable vehicle interfaces
platform and transfer plate geometry.
Material transfer
operating sequence, access and protection.
Explore loading bay applications
Planning paths to review, with suitability confirmed against the actual site.
Does this approach fit your site?
Compare ramp and lifting approaches before committing to civil works.
Review before selection
- Lowest and highest transfer levels
- Load distribution
- Transfer plates and guarding
Unsuitable where the site cannot provide the necessary space, structural support or safe operating envelope. Confirm these constraints before comparing configurations.
Discuss this application
Explore the equipment
1 results
JD-2003What changes the specification?
- Lowest and highest transfer levels
- Load distribution
- Transfer plates and guarding
Quantity, site access, installation responsibilities and required documentation also affect the agreed scope. Price and delivery are confirmed against a defined configuration.
Records before order
Agree the relevant dimensions, material or component identification, control requirements and inspection evidence. Use the latest drawing revision for interface checks.
Review our coordination processPrepare the right information
Lowest and highest transfer levels
Load distribution
Transfer plates and guarding
Questions before you specify
What should I provide before requesting a configuration?
Lowest and highest transfer levels, Load distribution, Transfer plates and guarding. Include drawings and photographs where available. Missing information should be identified explicitly so the supplier can confirm the relevant interface rather than assume it.
Are the displayed illustrations the final configuration?
No. Supplier illustrations identify a product family. The equipment configuration, dimensions, controls and installation details must be agreed for the project before order.
Can the equipment be coordinated with doors?
Door requirements can be included in the project brief. JBL Entrance is our sister company for the door scope. Door and dock information remain separate while opening and control interfaces are coordinated.
How are replacement components identified?
Provide the original equipment identification, component photographs and dimensions. Supply availability and compatibility require confirmation; a similar appearance or product name is not sufficient to select a replacement.
Guides for selection and project planning
Product illustrationStart with the right height.
How to determine loading dock height
Determine the dock height from the vehicles and handling process the bay must serve. Record the range of vehicle deck heights and operating conditions before selecting the equipment or fixing the civil design.
Product illustrationsNo fixed dock? Compare your options.
Ground-level loading: yard ramp or scissor lift dock leveler?
A yard ramp uses an inclined travel route; a scissor lift dock leveler changes the transfer height with a platform. Compare available space, vehicle height, handling method and load distribution before choosing an approach for a site without a fixed dock.
Product illustrationsMatch the table to your pallet.

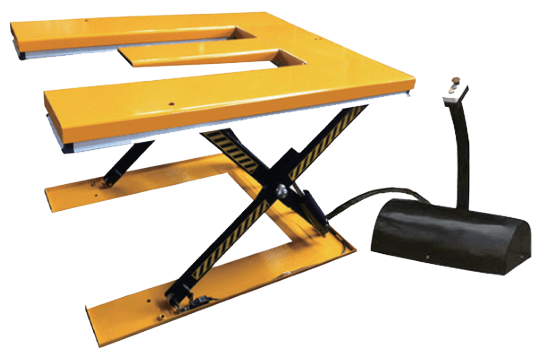

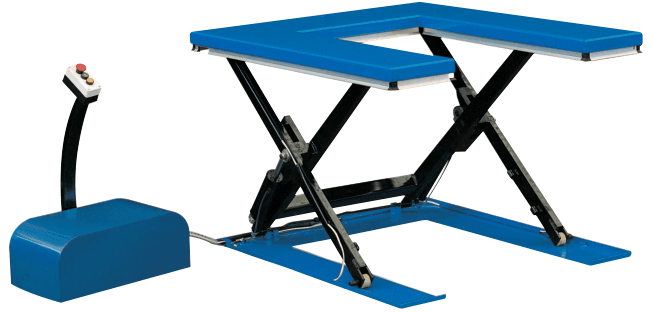

E-type, U-type and standard scissor lift tables: how to compare
Choose a scissor lift table around the pallet or workpiece, its load distribution and the way it enters the platform. A platform shape alone does not confirm compatibility with a pallet truck, forklift or production workstation.
Supplier reference photoCapacity is more than a label.
Dock leveler capacity: is forklift lifting capacity enough?
No. A forklift lifting-capacity label does not describe the total moving load imposed on a dock leveler. Provide the truck operating weight, attachments, maximum carried load, wheel and axle information, travel conditions and frequency. Ask the supplying manufacturer to confirm the rating basis and suitability of the proposed configuration.
Complete the bay
0102
Dock Components & Spare Parts
Identify the equipment before replacing parts.
Dock Doors for Loading Bays
Coordinate doors through JBL Entrance.
Source: JBL Dock Catalogue V1.2 (review edition) and website planning framework. Content reviewed for this draft: 17 October 2026. Technical values and configuration require project confirmation.
