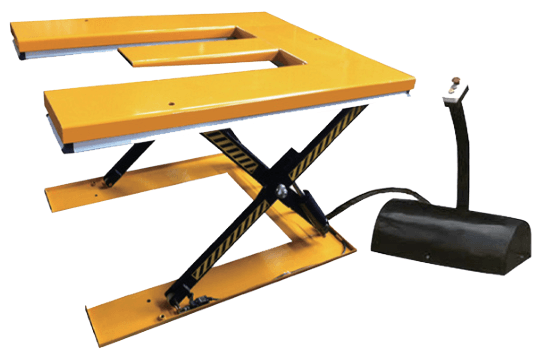

E-Type Scissor Lift Table
Assess an E-shaped platform against pallet geometry and feeding method. Final selection depends on the documented site conditions and the supplying manufacturer’s configuration.
Add to bay brief
Where to consider this arrangement
Assess an E-shaped platform against pallet geometry and feeding method.
- Confirm pallet or workpiece dimensions.
- Confirm load distribution and feeding method.
- Confirm required working heights.
When to review alternatives
Do not select this arrangement if the required working space, mounting conditions or operating envelope cannot be demonstrated. Existing equipment and civil works must be measured before a replacement is proposed.
Light-Duty Scissor Lift TableU-Type Scissor Lift TableStationary Scissor Lift PlatformHow do I check an E-shaped platform against a pallet?
Provide pallet dimensions and the geometry of the handling equipment used to feed it. Ask for the proposed platform openings, support positions and operating clearances to be checked together.
Pallet drawing
Feeding equipment dimensions
Platform support and opening arrangement
Specifications and configuration
| Item | Project record |
|---|---|
| Product reference | JD-2014 |
| Pallet or workpiece dimensions | Confirmed per project |
| Load distribution and feeding method | Confirmed per project |
| Required working heights | Confirmed per project |
| Dimensioned drawing | Available on request — confirmed per project |
Source: JBL Dock Catalogue V1.2 (review edition) and website planning framework. Content reviewed for this draft: 17 October 2026. Technical values and configuration require project confirmation.
The catalogue reference table below distinguishes review values from unresolved entries. These are not approved order specifications. No certification or universal compatibility is claimed.
Catalogue configuration reference
Review data—not an approved order specification. The entries below are transcribed from Catalogue V1.2 and remain subject to technical confirmation.
JD-2014 · JD-2170–JD-2172 · Catalogue pages 23
| Parameter | Review catalogue entry | What to confirm |
|---|---|---|
| Capacity choices | 1000 / 1500 / 2000 kg listed | Check pallet support and feeding method. |
| Platform form | E-type | Confirm openings and fork/wheel clearances. |
| Heights | Closed height, travel and overall height must agree | Request a corrected configuration-specific drawing. |
Open technical items: JD-2171 height entries do not reconcile. Dimensional units and orange finish code are unconfirmed.
What should be checked?
Agree the inspection scope with the supplying manufacturer before order. Relevant checks include dimensions against the approved drawing, component identity, mounting details, visible condition, applicable functional checks, marking and packing.
Inspection records to agreeWhat configuration is required?
Describe the operating sequence and site constraints. Confirm materials, finish, electrical requirements and control interfaces where applicable. Options shown in reference illustrations are not automatically included in the order.
Know what your quotation includes
Compare the same equipment and installation scope. Ask for an itemised offer showing the selected configuration, included items and exclusions.
No universal standard package is confirmed in this review. Agree the following scope before comparing prices.
| Scope to identify | Written confirmation to request |
|---|---|
| Platform shape, load support and working heights | Exact model, construction and drawing revision. |
| Pallet entry and handling-equipment clearances | Included equipment, separately priced options and excluded site work. |
| Mounting, power and control position | Interfaces, responsibilities and required documentation. |
A simpler way to request a comparable quotation
Start with a short description or photo. Add the following when available; mark anything unknown so it can be resolved together.
| Share with your enquiry | What this helps clarify |
|---|---|
| Pallet drawing | Equipment fit and selection |
| Feeding equipment dimensions | Installation and interface requirements |
| Platform support and opening arrangement | The configuration to review |
| Quantity, location and preferred schedule | Supply and delivery planning; dates require confirmation. |
| Existing or new installation | Existing structures and equipment to measure and review. |
| Required documents and inspection records | Acceptance evidence and responsibilities before order. |
Keep the product information together
Catalogue V1.2 · Pages 23 · JD-2170–JD-2172. Review edition: final configuration and technical details require confirmation.
Information we need for a project review
Pallet drawing
Feeding equipment dimensions
Platform support and opening arrangement
Quantity and installation location
Target delivery date
Drawings and current equipment photographs
Components and replacement enquiries
Identify the installed equipment before requesting a component. Include nameplate details, overall photographs, interface close-ups and measurements. Replacement availability and compatibility are confirmed for the individual request.
Prepare a parts requestRead before you specify
Questions before you specify
How do I check an E-shaped platform against a pallet?
Provide pallet dimensions and the geometry of the handling equipment used to feed it. Ask for the proposed platform openings, support positions and operating clearances to be checked together.
Is JD-2014 a complete order specification?
A product-family reference is not a complete order specification. Record dimensions, load conditions, controls, installation interfaces and the agreed supplier configuration in the project documents before ordering.
Can I use an existing pit or mounting position?
Existing interfaces need to be measured and checked against the selected equipment drawing. Do not assume that similar equipment has the same fixing, clearance or structural requirements.
What if I do not have all the dimensions?
Start with site photographs and any available drawings. Leave unknown values blank in the project brief and identify them for confirmation. A dimensioned drawing and site verification are needed before final selection.
