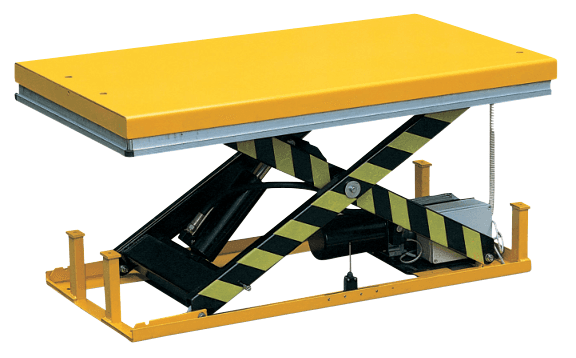

Light-Duty Scissor Lift Table
A workshop lift-table arrangement for workpiece or pallet positioning. Final selection depends on the documented site conditions and the supplying manufacturer’s configuration.
Add to bay brief
Where to consider this arrangement
A workshop lift-table arrangement for workpiece or pallet positioning.
- Confirm pallet or workpiece dimensions.
- Confirm load distribution and feeding method.
- Confirm required working heights.
When to review alternatives
Do not select this arrangement if the required working space, mounting conditions or operating envelope cannot be demonstrated. Existing equipment and civil works must be measured before a replacement is proposed.
E-Type Scissor Lift TableU-Type Scissor Lift TableStationary Scissor Lift PlatformWhat information is needed beyond the load weight?
Describe the workpiece or pallet dimensions, how the load sits on the table and the required working heights. Ask the supplier to review the feeding method and selected configuration; the light-duty label is not an approved capacity.
Workpiece dimensions and load distribution
Working-height range
Loading and unloading method
Specifications and configuration
| Item | Project record |
|---|---|
| Product reference | JD-2013 |
| Pallet or workpiece dimensions | Confirmed per project |
| Load distribution and feeding method | Confirmed per project |
| Required working heights | Confirmed per project |
| Dimensioned drawing | Available on request — confirmed per project |
Source: JBL Dock Catalogue V1.2 (review edition) and website planning framework. Content reviewed for this draft: 17 October 2026. Technical values and configuration require project confirmation.
The catalogue reference table below distinguishes review values from unresolved entries. These are not approved order specifications. No certification or universal compatibility is claimed.
Catalogue configuration reference
Review data—not an approved order specification. The entries below are transcribed from Catalogue V1.2 and remain subject to technical confirmation.
JD-2013 · JD-2146–JD-2169 · Catalogue pages 21–22
| Parameter | Review catalogue entry | What to confirm |
|---|---|---|
| Capacity families | 1000 / 2000 / 4000 kg listed | Confirm the exact platform and load distribution. |
| Configuration | 24 model rows | Request one complete row with a dimensioned drawing. |
| Hydraulics | One or two main cylinders described | Confirm the selected model. |
Open technical items: Dimensional units are absent, one row contains overlapping source text, and an orange finish code conflicts with its swatch. Do not infer units or colour.
What should be checked?
Agree the inspection scope with the supplying manufacturer before order. Relevant checks include dimensions against the approved drawing, component identity, mounting details, visible condition, applicable functional checks, marking and packing.
Inspection records to agreeWhat configuration is required?
Describe the operating sequence and site constraints. Confirm materials, finish, electrical requirements and control interfaces where applicable. Options shown in reference illustrations are not automatically included in the order.
Know what your quotation includes
Compare the same equipment and installation scope. Ask for an itemised offer showing the selected configuration, included items and exclusions.
No universal standard package is confirmed in this review. Agree the following scope before comparing prices.
| Scope to identify | Written confirmation to request |
|---|---|
| Platform shape, load support and working heights | Exact model, construction and drawing revision. |
| Pallet entry and handling-equipment clearances | Included equipment, separately priced options and excluded site work. |
| Mounting, power and control position | Interfaces, responsibilities and required documentation. |
A simpler way to request a comparable quotation
Start with a short description or photo. Add the following when available; mark anything unknown so it can be resolved together.
| Share with your enquiry | What this helps clarify |
|---|---|
| Workpiece dimensions and load distribution | Equipment fit and selection |
| Working-height range | Installation and interface requirements |
| Loading and unloading method | The configuration to review |
| Quantity, location and preferred schedule | Supply and delivery planning; dates require confirmation. |
| Existing or new installation | Existing structures and equipment to measure and review. |
| Required documents and inspection records | Acceptance evidence and responsibilities before order. |
Keep the product information together
Catalogue V1.2 · Pages 21–22 · JD-2146–JD-2169. Review edition: final configuration and technical details require confirmation.
Information we need for a project review
Workpiece dimensions and load distribution
Working-height range
Loading and unloading method
Quantity and installation location
Target delivery date
Drawings and current equipment photographs
Components and replacement enquiries
Identify the installed equipment before requesting a component. Include nameplate details, overall photographs, interface close-ups and measurements. Replacement availability and compatibility are confirmed for the individual request.
Prepare a parts requestRead before you specify
Questions before you specify
What information is needed beyond the load weight?
Describe the workpiece or pallet dimensions, how the load sits on the table and the required working heights. Ask the supplier to review the feeding method and selected configuration; the light-duty label is not an approved capacity.
Is JD-2013 a complete order specification?
A product-family reference is not a complete order specification. Record dimensions, load conditions, controls, installation interfaces and the agreed supplier configuration in the project documents before ordering.
Can I use an existing pit or mounting position?
Existing interfaces need to be measured and checked against the selected equipment drawing. Do not assume that similar equipment has the same fixing, clearance or structural requirements.
What if I do not have all the dimensions?
Start with site photographs and any available drawings. Leave unknown values blank in the project brief and identify them for confirmation. A dimensioned drawing and site verification are needed before final selection.
