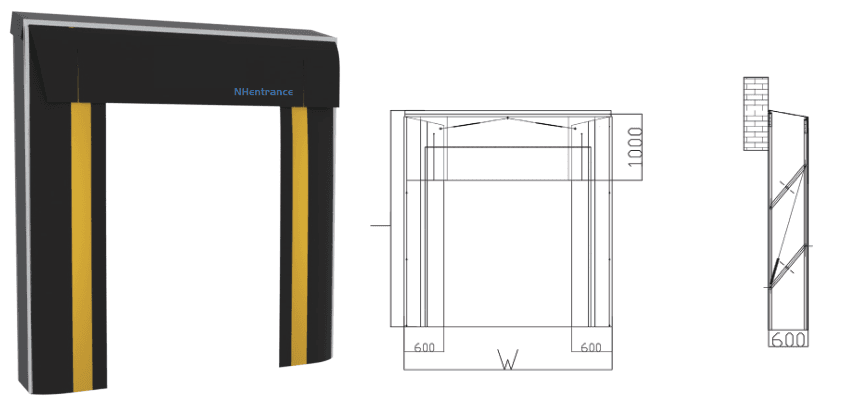

Mechanical Dock Shelter
A curtain shelter arrangement to match the opening and vehicle envelope. Final selection depends on the documented site conditions and the supplying manufacturer’s configuration.
Add to bay brief
Where to consider this arrangement
A curtain shelter arrangement to match the opening and vehicle envelope.
- Confirm door opening and vehicle dimensions.
- Confirm vehicle positioning.
- Confirm curtain, foam or airbag arrangement.
When to review alternatives
Do not select this arrangement if the required working space, mounting conditions or operating envelope cannot be demonstrated. Existing equipment and civil works must be measured before a replacement is proposed.
Foam Dock SealInflatable Dock ShelterHow do I brief a curtain shelter for mixed vehicles?
Provide dimensions and rear photographs of the vehicles that use the opening. Compare the proposed curtain arrangement with docking position, door guides and surrounding wall space instead of selecting only by nominal opening size.
Vehicle rear envelopes
Door opening and guide positions
Curtain arrangement and docking position
Specifications and configuration
| Item | Project record |
|---|---|
| Product reference | JD-2010 |
| Door opening and vehicle dimensions | Confirmed per project |
| Vehicle positioning | Confirmed per project |
| Curtain, foam or airbag arrangement | Confirmed per project |
| Dimensioned drawing | Available on request — confirmed per project |
Source: JBL Dock Catalogue V1.2 (review edition) and website planning framework. Content reviewed for this draft: 17 October 2026. Technical values and configuration require project confirmation.
The catalogue reference table below distinguishes review values from unresolved entries. These are not approved order specifications. No certification or universal compatibility is claimed.
Catalogue configuration reference
Review data—not an approved order specification. The entries below are transcribed from Catalogue V1.2 and remain subject to technical confirmation.
JD-2010 · JD-2135–JD-2138 · Catalogue pages 18
| Parameter | Review catalogue entry | What to confirm |
|---|---|---|
| Top curtain options | 1000 / 1200 / 1500 mm listed | Confirm vehicle overlap and selected curtain. |
| Side curtain options | 600 / 700 mm listed | Check vehicle widths and docking position. |
| Frame | Aluminum listed | Confirm mounting and actual mechanism. |
Open technical items: Overall W×H units and the sealing-performance test basis are unconfirmed. No sealing percentage is approved here.
What should be checked?
Agree the inspection scope with the supplying manufacturer before order. Relevant checks include dimensions against the approved drawing, component identity, mounting details, visible condition, applicable functional checks, marking and packing.
Inspection records to agreeWhat configuration is required?
Describe the operating sequence and site constraints. Confirm materials, finish, electrical requirements and control interfaces where applicable. Options shown in reference illustrations are not automatically included in the order.
Know what your quotation includes
Compare the same equipment and installation scope. Ask for an itemised offer showing the selected configuration, included items and exclusions.
No universal standard package is confirmed in this review. Agree the following scope before comparing prices.
| Scope to identify | Written confirmation to request |
|---|---|
| Curtains, foam pads or inflatable elements | Exact model, construction and drawing revision. |
| Frame, backing and wall fixings | Included equipment, separately priced options and excluded site work. |
| Fan and controls where applicable; replacement elements | Interfaces, responsibilities and required documentation. |
A simpler way to request a comparable quotation
Start with a short description or photo. Add the following when available; mark anything unknown so it can be resolved together.
| Share with your enquiry | What this helps clarify |
|---|---|
| Vehicle rear envelopes | Equipment fit and selection |
| Door opening and guide positions | Installation and interface requirements |
| Curtain arrangement and docking position | The configuration to review |
| Quantity, location and preferred schedule | Supply and delivery planning; dates require confirmation. |
| Existing or new installation | Existing structures and equipment to measure and review. |
| Required documents and inspection records | Acceptance evidence and responsibilities before order. |
Keep the product information together
Catalogue V1.2 · Pages 18 · JD-2135–JD-2138. Review edition: final configuration and technical details require confirmation.
Information we need for a project review
Vehicle rear envelopes
Door opening and guide positions
Curtain arrangement and docking position
Quantity and installation location
Target delivery date
Drawings and current equipment photographs
Components and replacement enquiries
Identify the installed equipment before requesting a component. Include nameplate details, overall photographs, interface close-ups and measurements. Replacement availability and compatibility are confirmed for the individual request.
Prepare a parts requestRead before you specify
Dock shelter vs dock seal: selection questions
A foam dock seal uses compressible pads at the vehicle interface, while shelter arrangements use curtains or inflatable elements around the opening. Compare the vehicle fleet, contact geometry and operating conditions before choosing.
Hinged lip vs telescopic lip dock levelers
A hinged lip rotates outward from the deck; a telescopic lip extends from it. Selection depends on the vehicle interface, required reach, door arrangement and installation geometry rather than a universal preference for either type.
Planning a cold-chain loading bay
Plan the leveler, shelter, door and building interface together for a temperature-controlled loading bay. The equipment combination must reflect the vehicle range, operating sequence and required environmental separation.
Questions before you specify
How do I brief a curtain shelter for mixed vehicles?
Provide dimensions and rear photographs of the vehicles that use the opening. Compare the proposed curtain arrangement with docking position, door guides and surrounding wall space instead of selecting only by nominal opening size.
Is JD-2010 a complete order specification?
A product-family reference is not a complete order specification. Record dimensions, load conditions, controls, installation interfaces and the agreed supplier configuration in the project documents before ordering.
Can I use an existing pit or mounting position?
Existing interfaces need to be measured and checked against the selected equipment drawing. Do not assume that similar equipment has the same fixing, clearance or structural requirements.
What if I do not have all the dimensions?
Start with site photographs and any available drawings. Leave unknown values blank in the project brief and identify them for confirmation. A dimensioned drawing and site verification are needed before final selection.
Explore loading bay applications
Planning paths to review, with suitability confirmed against the actual site.
